Measuring the Mass of a Chocolate Candy

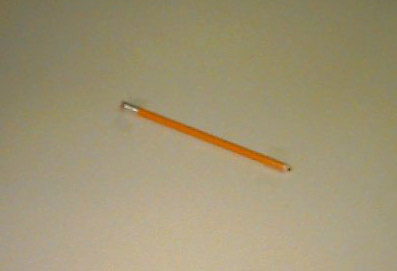

| Use a pencil lying on its side as a fulcrum. Tape each end to
the desktop to prevent it from moving during the remainder of the experiment.
|

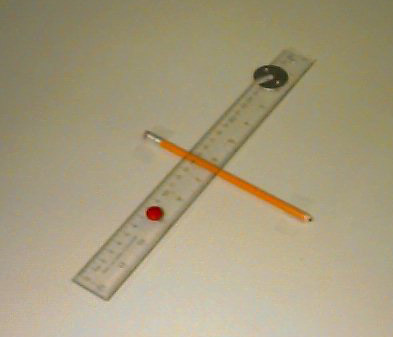

| Use the ruler, the calibrated mass, one hard-shelled chocolate candy,
and your knowledge of rotational equilibrium to determine the mass of the
chocolate candy.
|
Questions
| 1.) For a rigid body, the sum of the externally applied torques equals
_____.
2.) Which torques are negative, and why? 3.) Describe your procedure. 4.) Draw a diagram of your apparatus. Indicate the position of the candy and the calibrated mass on the diagram, including the forces and distances from the fulcrum. 5.) Show your calculations to determine the mass of one candy. |
