Strobe Project Boxes

Gathering the Materials

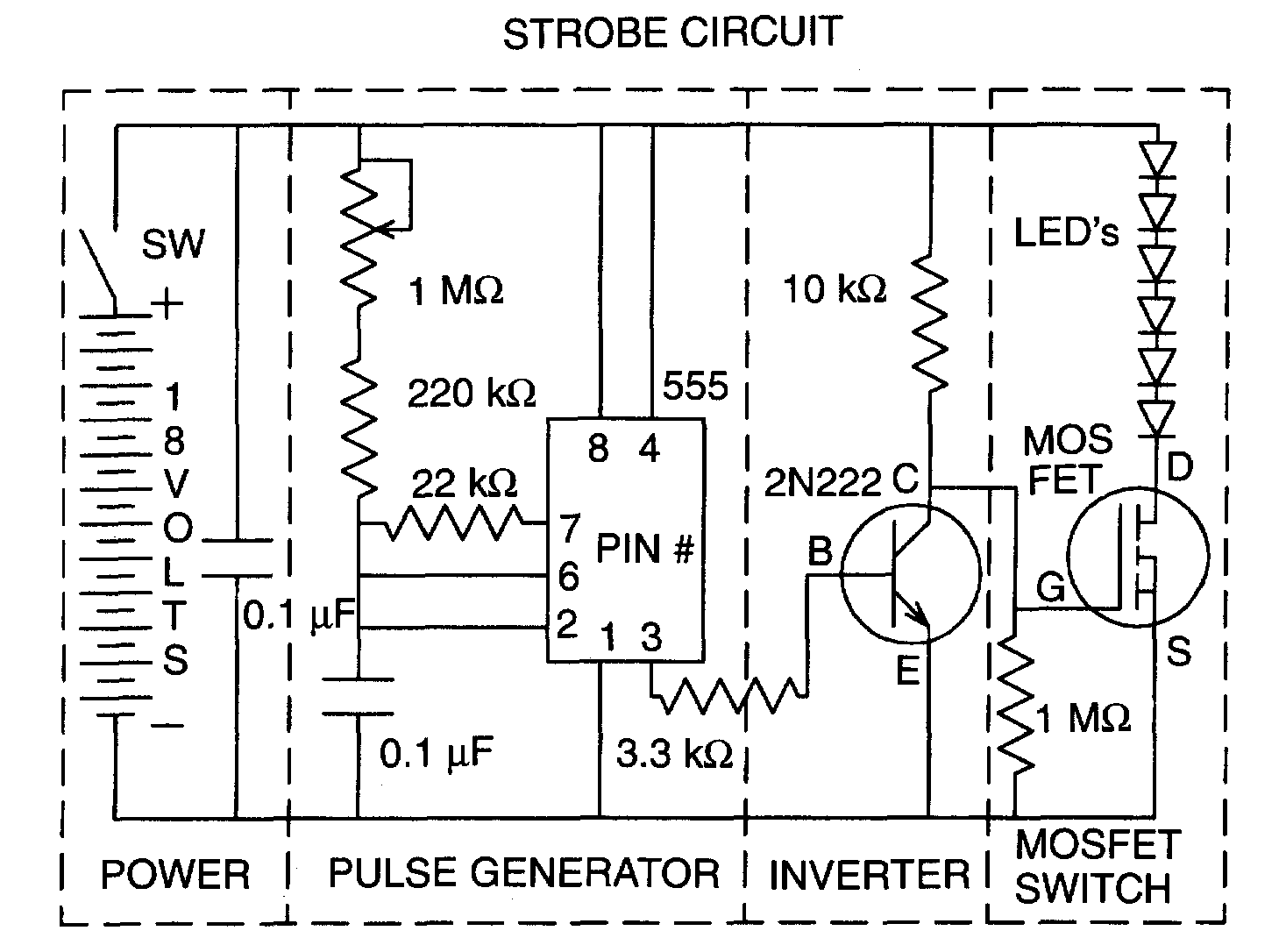

From this diagram, pulled from the site mentioned in the page before this, we were able to tell what materials we needed in order to build the circuit.

Materials Needed

• Two 0.1µF Capacitors
• One 1 Mega Ohm Capacitor
• 220k Ohm Resistor
• 22k Ohm Resistor
• 3.3k Ohm Resistor
• 10k Ohm Resistor
• 1 Mega Ohm Resistor
• 555 Timer
• Mos Fet
• 6 Bright LED's
• 2N2222 Transistor
• Wires
• Project Box
• Push Button Switch
• Toggle switch
• Two Screws
• Four Washers

  ---
