Strobe Project Boxes



Step #4


Getting Circuit Ready for Project Box

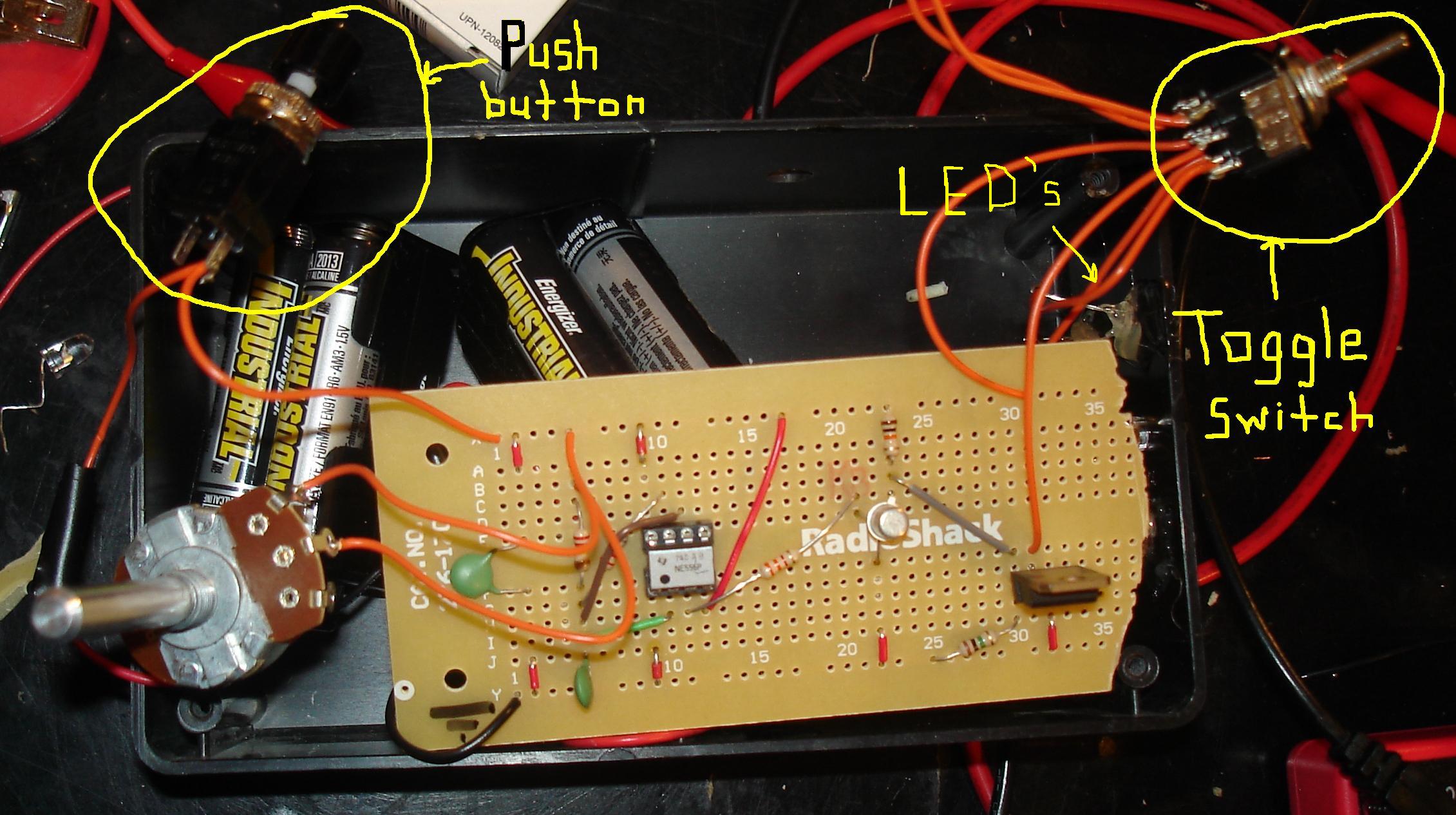

For this step we added both a push button (To turn strobe on and off) and a toggle switch (to switch between internal and external strobe). We also added three packs of four batteries to power the strobe. As part of this step we made holes in the project box so the the toggle switch, push button, potentiometer turning nob, two screws (for external strobe connection) and the six LED's are showing on the outside of the box.
